Kitchenware packaging has to protect the product and the people who handle it, present it properly in its sales channel, and fill cartons and containers efficiently. For knives, that starts with a guard that contains the tip and edge, followed by a retail pack, inner carton and master carton designed together. Moisture control and transit testing should match the real shipping route, and every decision belongs in a written pack specification.
Start with the tip and the edge
For most kitchenware, packaging protects the product from the journey. For knives it also has to protect the journey from the product. A blade that works loose can cut through its own retail box, damage its neighbors in the carton and injure the person who opens it at a warehouse or at home. The first packaging decision for a knife is therefore how the tip and the full length of the edge are contained.
- A blade guard or sheath in plastic, card, leather or another agreed material, sized to the actual blade and covering the edge from tip to heel.
- Retention that keeps the guard on when the pack is dropped, tilted or opened from the wrong end, checked with the real knife rather than a drawing.
- An insert or tray that holds the knife by the handle or bolster, so the edge does not rest against card or another knife.
- A surface that does not scratch a polished blade or trap moisture against the steel.
- An opening direction that presents the handle first, with any sharp-edge warning and care text your market requires approved before printing.
Two knife types need extra thought. Ceramic blades are hard but brittle, so the pack should stop the tip and edge from taking any impact, not simply cover them. Wood and pakkawood handles respond to humidity, which affects both the handle and the moisture inside the pack; that is covered below. Our chef knife programs treat the guard and retail pack as part of the approved sample for this reason.

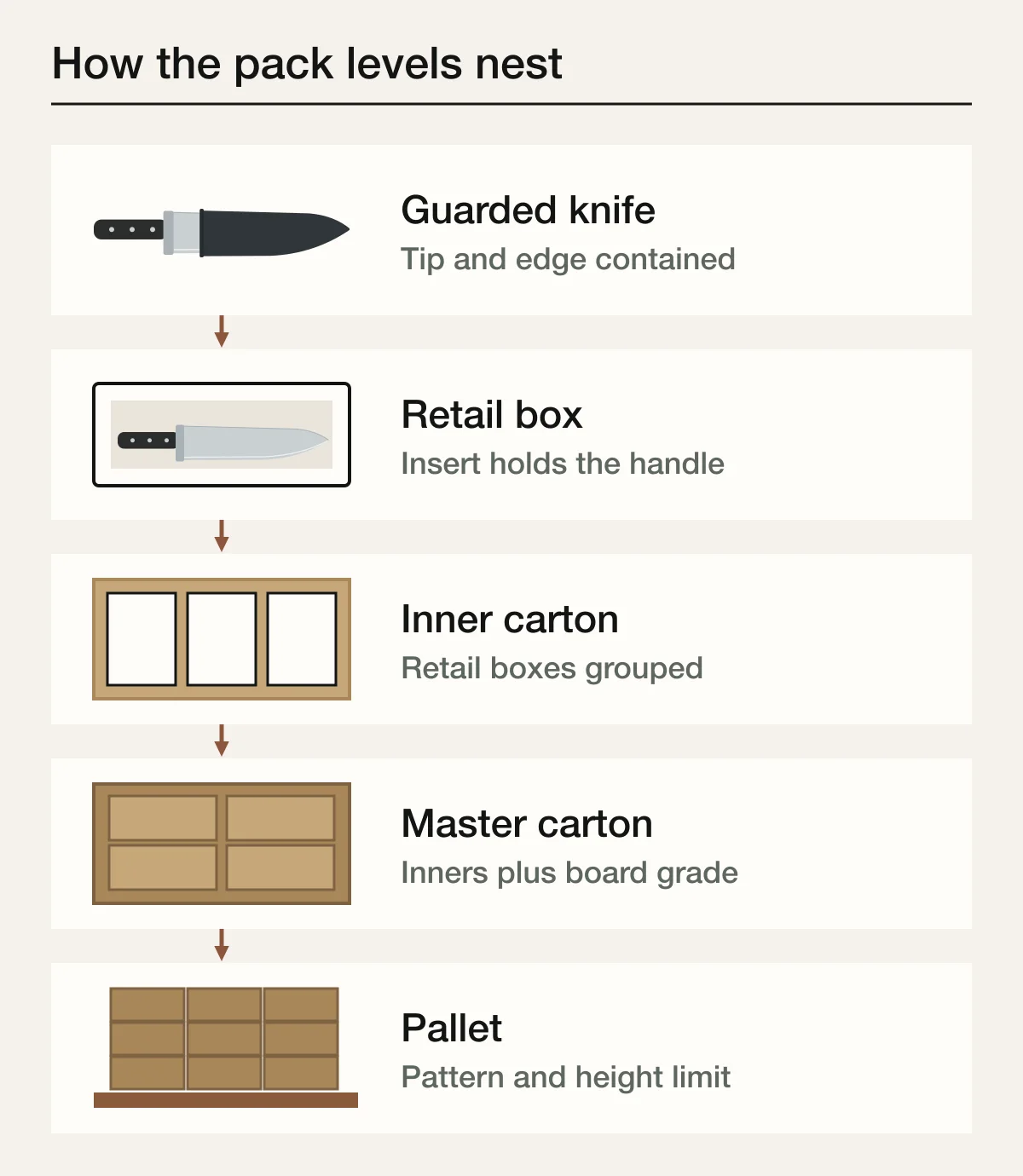

How the retail pack, inner carton and master carton fit together
Packaging is a set of nested decisions, each with its own cost, lead time and minimum order. They are easiest to get right when they are designed together from the product outward.
Swipe or scroll the table to compare all columns.
| Level | Its job | Decide in the specification |
|---|---|---|
| Unit protection | Contain the tip and edge; protect the finish | Guard type and material, fit, retention, removal direction |
| Retail pack | Present the product and carry required information | Structure, insert, window or closed, barcode position, warnings |
| Inner carton | Group retail packs into a pick or replenishment unit | Units per inner, dividers, label |
| Master carton | Protect inners in shipping and fill the pallet efficiently | External dimensions, inners per master, board grade, gross weight, marks |
| Pallet and container load | Move cartons safely and use the container volume | Pattern, layers, height limit, wrapping, pallet type |
The inner carton is opened inside the supply chain, not by the customer, and some products ship without one. Every product needs a master carton, and its external dimensions and gross weight decide how many fit on a pallet and therefore into a container.
How many units should go in a master carton?
Whatever number produces the best pallet pattern for your destination, which is rarely a round number chosen in advance. The arithmetic is unforgiving. If a master carton is just tall enough that only four layers fit under the pallet height limit instead of five, each pallet carries 20 percent fewer cartons, and the same order needs 25 percent more pallet positions. The product is unchanged and the freight cost per unit rises for the life of the item.
Ask the factory to confirm the external master carton dimensions, the cartons per pallet for your destination pallet size and height limit, and the gross weight before artwork is finalized. Then test whether a small change in units per carton improves the pattern. Check the gross weight against your receivers' manual handling limits too; a carton that fills a pallet perfectly but is too heavy to lift safely will cause problems at the warehouse.
Moisture, condensation and wood handles
Sea freight exposes a closed container to daily heating and cooling for weeks. The IMO, ILO and UNECE Code of Practice for Packing of Cargo Transport Units (the CTU Code) treats condensation damage, including corrosion and weakened cardboard, as a particular risk for freight containers on long voyages. It identifies the cargo itself as the usual source of that humidity, together with timber bracing, pallets, porous packaging and moisture introduced by packing during rain or in hot, humid air.
How should moisture risk be assessed in transit?

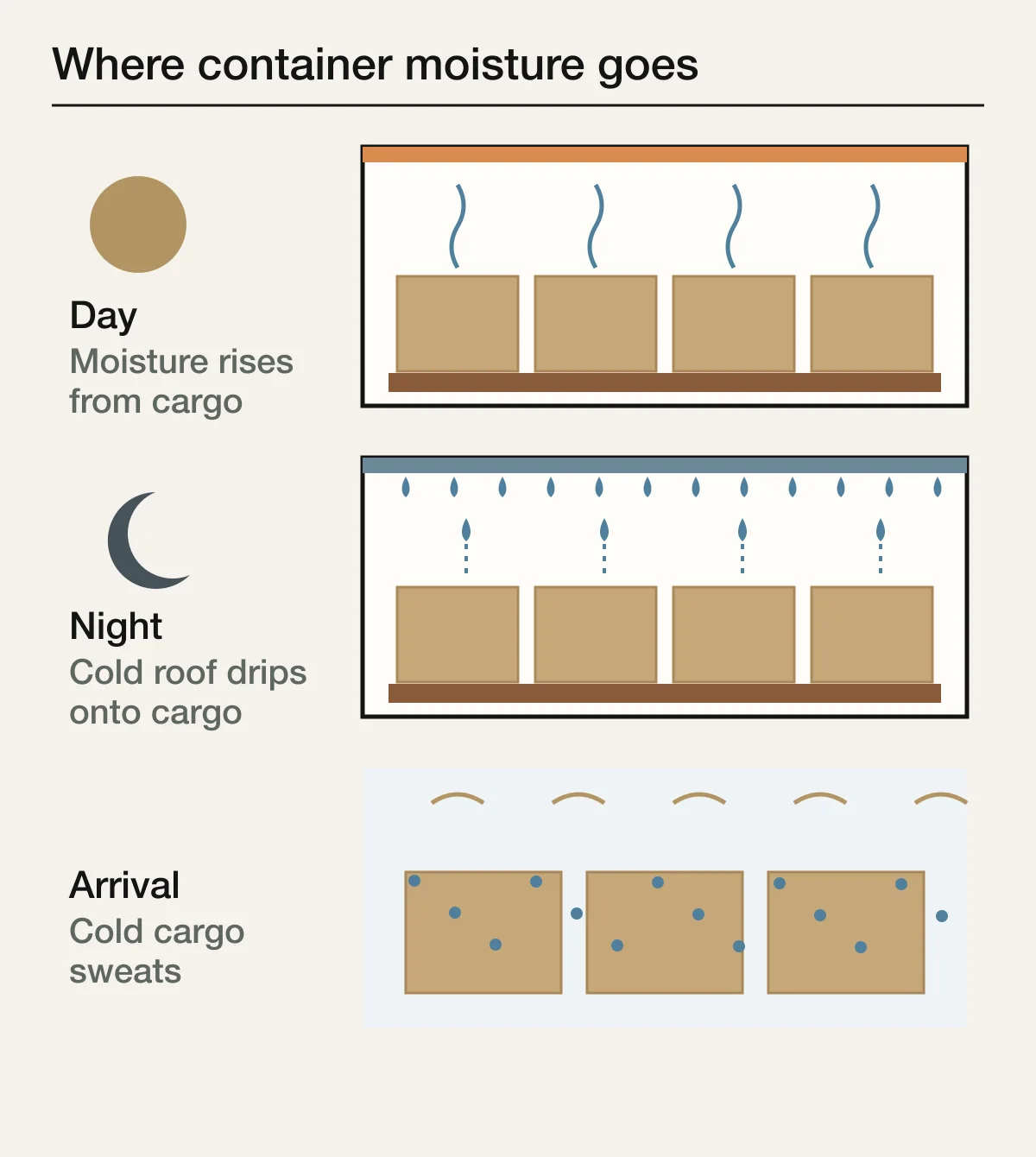

Start with the route and the season. The CTU Code distinguishes container sweat, where moisture condenses under a cold container roof and drips onto the cargo, from cargo sweat, where cold goods unloaded into warm, humid air collect condensation on their surfaces, a risk it highlights for metal products. It also explains that even apparently dry pallets, dunnage and packing materials release enough moisture to keep the air in a closed container humid. Stainless steels resist corrosion far better than plain carbon steel, but blade steels, freshly ground edges and any carbon-steel component are where spotting tends to appear first, so the real route and season should decide the moisture controls, and the packed product should be checked after a representative trial rather than judged against a single humidity figure.
The same annex warns that ordinary cardboard loses much of its stacking strength as humidity rises, which is why stacked cartons can collapse on long voyages, and that desiccant added to a container whose cargo is still damp will generally not have the capacity to cope. Desiccant decisions come at two levels. A sachet in the unit pack only protects the product if it sits inside a reasonably sealed barrier, such as a closed bag around the knife. Container-level desiccant products are a separate approach, sized for the container, its contents and the voyage. Either is a sized engineering choice to specify and validate with the supplier, not something to add by habit.
What changes for wood handles?
Wood keeps exchanging moisture with the air around it. The US Forest Service's Wood Handbook explains that the exchange depends on the humidity and temperature of the air and on the water already in the wood, and that coatings such as varnish or lacquer slow these changes without preventing them. In practice, a wood handle packed damp adds moisture to a closed pack, and a handle that dries or swells in transit can open small gaps at the tang and rivets. Agree the handle finish and its condition at packing, and include the handle joints in the arrival check.
Validate the packed product for its real route
Artwork approval confirms the design is right. Pack validation confirms the packed product survives its route and arrives safe to open. ISTA, the International Safe Transit Association, publishes its test procedures by series. Series 1 integrity tests are screening tests that do not simulate the environment. Series 2 adds at least one simulation element but is not intended to predict shipping performance. Series 3 general simulation tests are designed to predict damage risk and can include atmospheric conditioning such as tropical wet conditions. Series 6 covers procedures for specific retailers and carriers.
Swipe or scroll the table to compare all columns.
| Route | What the pack must survive | Procedure to discuss |
|---|---|---|
| Early design screening | Basic drops and vibration on a prototype pack | ISTA 1A or 2A, for packaged products of 150 lb (68 kg) or less |
| Parcel delivery direct to consumers | Repeated individual handling, drops and vibration | ISTA 3A, Parcel Delivery System Shipments 150 lb (70kg) or Less |
| Shipping to Amazon fulfillment centers in its own container | Parcel or LTL handling with no extra packaging added by Amazon | ISTA 6-Amazon.com-SIOC, plus Amazon's current requirements in Seller Central |
| Unitized pallets by truckload to a distribution center | Stacking, compression and handling of similar products on pallets | ISTA 3E for the truckload leg, with humidity conditioning agreed for the sea leg |
- Freeze the pack drawing, materials and board grade on a representative sample.
- Choose the procedure that matches the channel and route, and agree any conditioning.
- Test with production-representative product: the real knife, guard, insert and carton.
- Define in advance what counts as damage, such as a tip through the guard, a damaged edge, a crushed retail box or a moved insert.
- Inspect and record the results, then retest after any change to board, insert, guard or count per carton.
ISTA procedures describe how to test, not what your product may tolerate, so the damage criteria in step four are yours to set. Use the sample approval guide to decide which sample stage is representative enough to test, and carry the pack-out checks into the pre-shipment inspection so that production matches the validated pack.
Board grade and carton markings
Corrugated board is specified by flute profile and wall construction, with a strength measure such as edge crush, which relates to stacking strength, or burst strength, which measures resistance to rupture under pressure. Neither tells you whether a knife tip will penetrate the pack, so test the complete pack with the real knife for that. Kitchenware is dense for its volume, so cartons are often heavier than their size suggests and stacking strength matters more than buyers expect. Specify the board to the voyage and the stack height rather than to the packing room, consider wet-strength board for humid routes, and ask for the board specification in writing, because it is an easy place for cost to be quietly removed between the sample and the production run.
Outer cartons usually carry the country of origin, the contents and quantity, the purchase order or style reference, the carton number in the series, and gross and net weights. Retailers often add their own label positions and marks. Approve the carton marking artwork with the retail artwork, because a carton marked with the wrong quantity creates receiving disputes at every stage of the supply chain.
Write a buyer pack specification
A pack specification turns the decisions above into one document that the factory, the packaging printer, the test house and the inspector can all work from. The template below lists the fields; the example entries are illustrative and need your own values.
Swipe or scroll the table to compare all columns.
| Field | What to state | Example entry (illustrative) |
|---|---|---|
| Product and reference | SKU, approved sample reference and date | 8 in chef knife, sample ref. and approval date |
| Edge and tip protection | Guard type, material, fit, retention and removal | Rigid guard covering tip to heel, retained by friction fit |
| Retail pack | Structure, insert, finish, barcode position, warnings | Rigid box with fitted insert; barcode on base panel |
| Inner carton | Retail packs per inner, dividers, label | Six per inner with divider; inner label with SKU and count |
| Master carton | Inners per master, external dimensions, gross weight limit | Four inners per master; dimensions and weight confirmed on sample |
| Board | Flute, wall, strength measure, wet-strength requirement | Double wall, strength grade agreed for the sea route |
| Moisture controls | Packing conditions, barrier, desiccant decision, handle condition | Packed dry; barrier and desiccant per validated design |
| Labels and marks | Origin, PO, carton numbers, weights, retailer labels | Per approved carton artwork revision |
| Transit validation | Procedure, conditioning, damage criteria, report | Named ISTA procedure for the channel; report filed with the sample |
| Pallet and loading | Pallet size, pattern, height limit, wrapping | Destination pallet; pattern confirmed before artwork |
Two commercial points belong in the same document. First, printed boxes and cartons carry their own minimums, set by the printer rather than the product factory, and a plain carton with an applied label is often the practical answer for a first run, as the MOQ guide explains. Second, some markets and states require brands to report or pay fees on the packaging they place on the market, so ask the factory for pack weight by material while it is still easy to provide, and check the rules for each market you sell into. Our packaging and branding service covers how these options are quoted.
Your checklist
- Tip and full-length edge containment specified and checked with the real knife
- Guard retention, removal direction and warning text approved before printing
- Retail pack, inner carton and master carton designed together
- Master carton dimensions, cartons per pallet and gross weight confirmed before artwork
- Units per carton tested against the destination pallet pattern and height limit
- Route and season assessed for container sweat and cargo sweat
- Packing conditions, barrier and any desiccant specified and validated, not added by habit
- Wood handle finish and condition at packing agreed, with joints checked on arrival
- Transit test procedure named for the channel, with damage criteria set in advance
- Board grade specified to the voyage, including wet strength where needed
- Buyer pack specification completed and filed with the approved sample
- Packaging minimums and pack weight by material requested with the quotation
